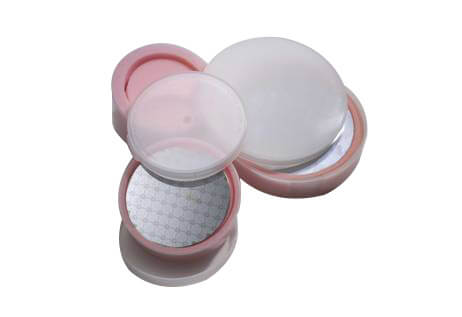

Wafer Containers (Jars & Lids) are designed to provide an efficient and effective packaging system to protect wafers during transport. Their easy-to-use packaging features help prevent breakage and damage to wafers by securing them in place with liners, interleaf discs, and foam cushions.
Also known as Coin Stack Jars, they are manufactured using the highest purity polypropylene in the SEMICONDUCTOR INDUSTRY.
FEATURES
- Anti-static foam liner
- Interleaf (Filter and Tyvek discs)
- Anti-static foam cushion

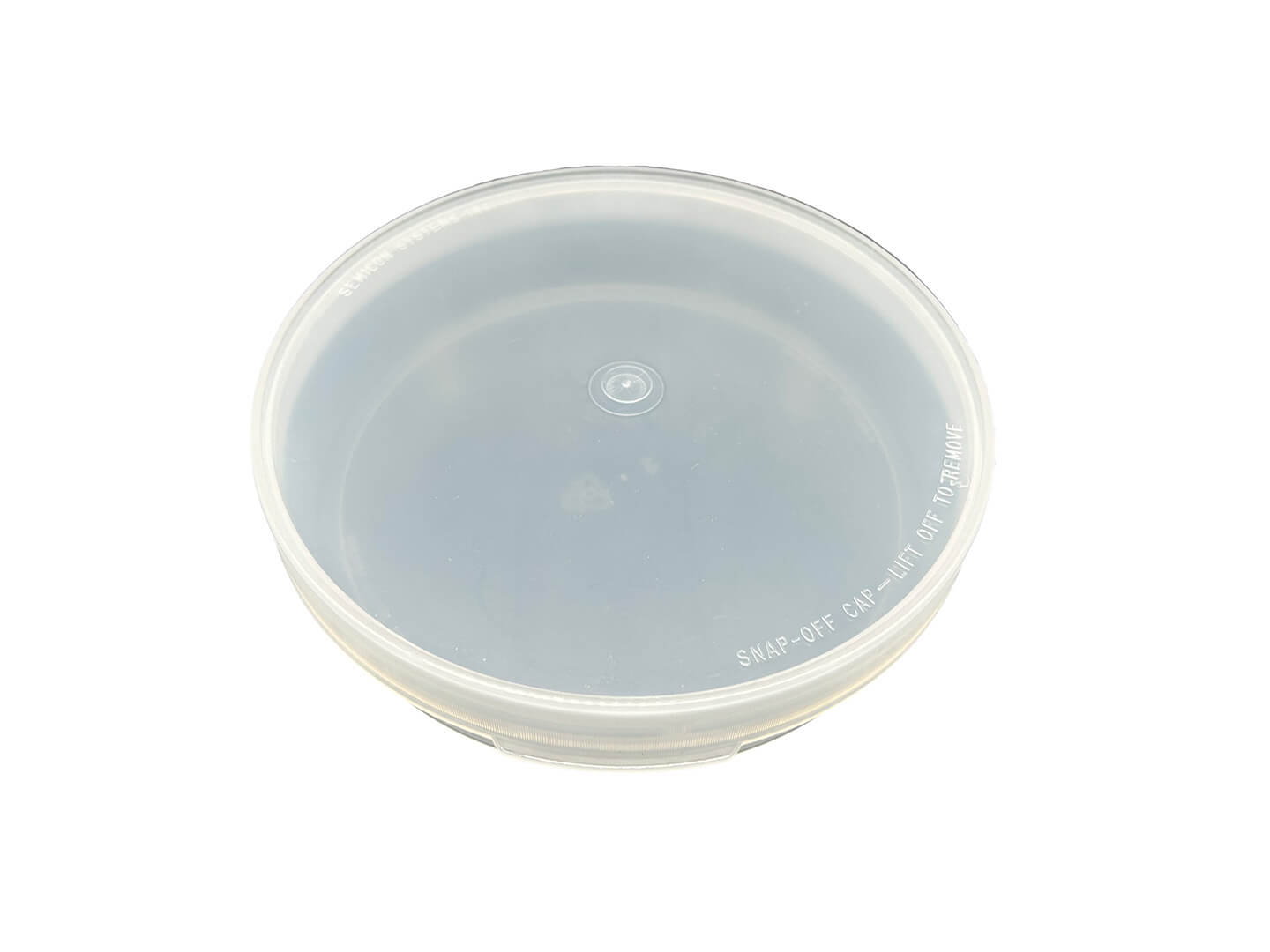

- Twist lock, snap-on, screw lids
HOW TO USE
- Insert foam liner around the inside wall of the wafer jar
- Place two foam cushion discs in bottom of wafer jar
- Place wafer interleaf disc on top of foam disc
- Place wafer on top of interleaf
- Continue putting an interleaf disc between wafers
as the wafer jar is packed - Place wafer interleaf disc on top of the last wafer
- Fill any empty space in top of jar with foam cushion discs
SPECIFICATIONS
For 3″ (75mm) Wafers Jars and Lids
| Part Number | Description | Standard Package |
|---|---|---|
| WMJ-1034 | 1-1/2″ Deep Wafer Jar | 350 per case |
| WMJ-1038 | 3″ Deep Wafer Jar | 200 per case |
| WML-1030 | Lid for Wafer Jar | 500 per case |
| Interleaf | ||
| HPD-3003 | Filter Interleaf Disc | 1000 per pak |
| TVK-3003 | Tyvek Interleaf Disc | 500 per pak |
| Foam Cushion | ||
| AFD-2301P | Anti-Static Foam Cushion | 2000 per carton |
For 4″ (100mm) Wafers Jars and Lids
| Part Number | Description | Standard Package |
|---|---|---|
| WMJ-1412 | 1-1/2″ Deep Wafer Jar | 120 per case |
| WMJ-1424 | 3″ Deep Wafer Jar | 100 per case |
| WML-1400 | Lid for Wafer Jar | 150 per case |
| Interleaf | ||
| HPD-3004 | Filter Interleaf Disc | 1000 per pak |
| TVK-3004 | Tyvek Interleaf Disc | 500 per pak |
| Foam Cushion | ||
| AFD-2401P | Anti-Static Foam Cushion | 2000 per carton |
For 5″ (125mm) Wafers Jars and Lids
| Part Number | Description | Standard Package |
|---|---|---|
| WMJ-1501 J, L | 1-1/2″ Deep Wafer Jar and Lid | 50 per case |
| WMJ-1502 J, L | 3″ Deep Wafer Jar and Lid | 50 per case |
| Foam Liner | ||
| ASL-2501P | Anti-Static Foam Liner For 1501 Jar | 50 per bundle |
| ASL-2502P | Anti-Static Foam Liner For 1502 Jar | 50 per bundle |
| Interleaf | ||
| HPD-3005 | Filter Interleaf Disc | 1000 per pak |
| TVK-3005 | Tyvek Interleaf Disc | 500 per pak |
| Foam Cushion | ||
| AFD-2501P | Anti-Static Foam Cushion | 1000 per pak |
For 6″ (150mm) Wafers Jars and Lids
| Part Number | Description | Standard Package |
|---|---|---|
| WMJ-1601 J, L | 1-1/2″ Deep Wafer Jar and Lid | 50 per case |
| WMJ-1602 J, L | 3″ Deep Wafer Jar and Lid | 50 per case |
| Foam Liner | ||
| ASL-2601P | Anti-Static Foam Liner For 1501 Jar | 50 per bundle |
| ASL-2602P | Anti-Static Foam Liner For 1502 Jar | 50 per bundle |
| Interleaf | ||
| HPD-3006 | Filter Interleaf Disc | 1000 per pak |
| TVK-3006 | Tyvek Interleaf Disc | 500 per pak |
| Foam Cushion | ||
| AFD-2601P | Anti-Static Foam Cushion | 1000 per pak |
For 8″ (200mm) Wafers Jars and Lids
| Part Number | Description | Standard Package |
|---|---|---|

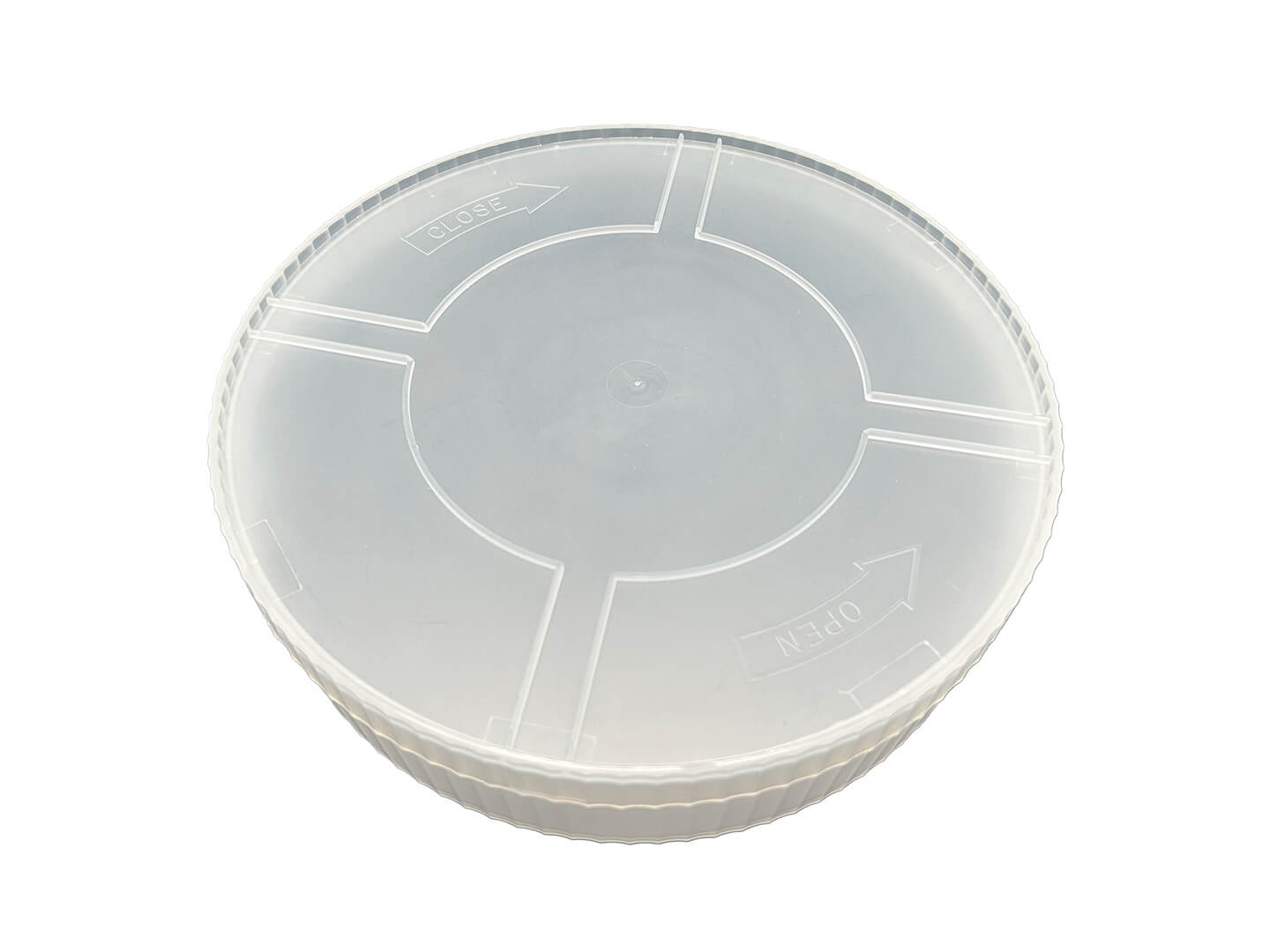

| WMJ-1801 TL | 2″ Deep Wafer Jar with Twist Lock Lid* | 20 per case |
| Foam Liner | ||
| ASL-2801P | Anti-Static Foam Liner | 20 per bundle |
| Interleaf | ||
| HPD-3008 | Filter Interleaf Disc | 500 per pak |
| TVK-3008 | Tyvek Interleaf Disc | 500 per pak |
| Foam Cushion | ||
| AFD-2801P | Anti-Static Foam Cushion | 500 per carton |
