Device Trays

  //   by spisemicon   //   Device Trays, Trays/Strip Packs  //  Comments Off on Device Trays

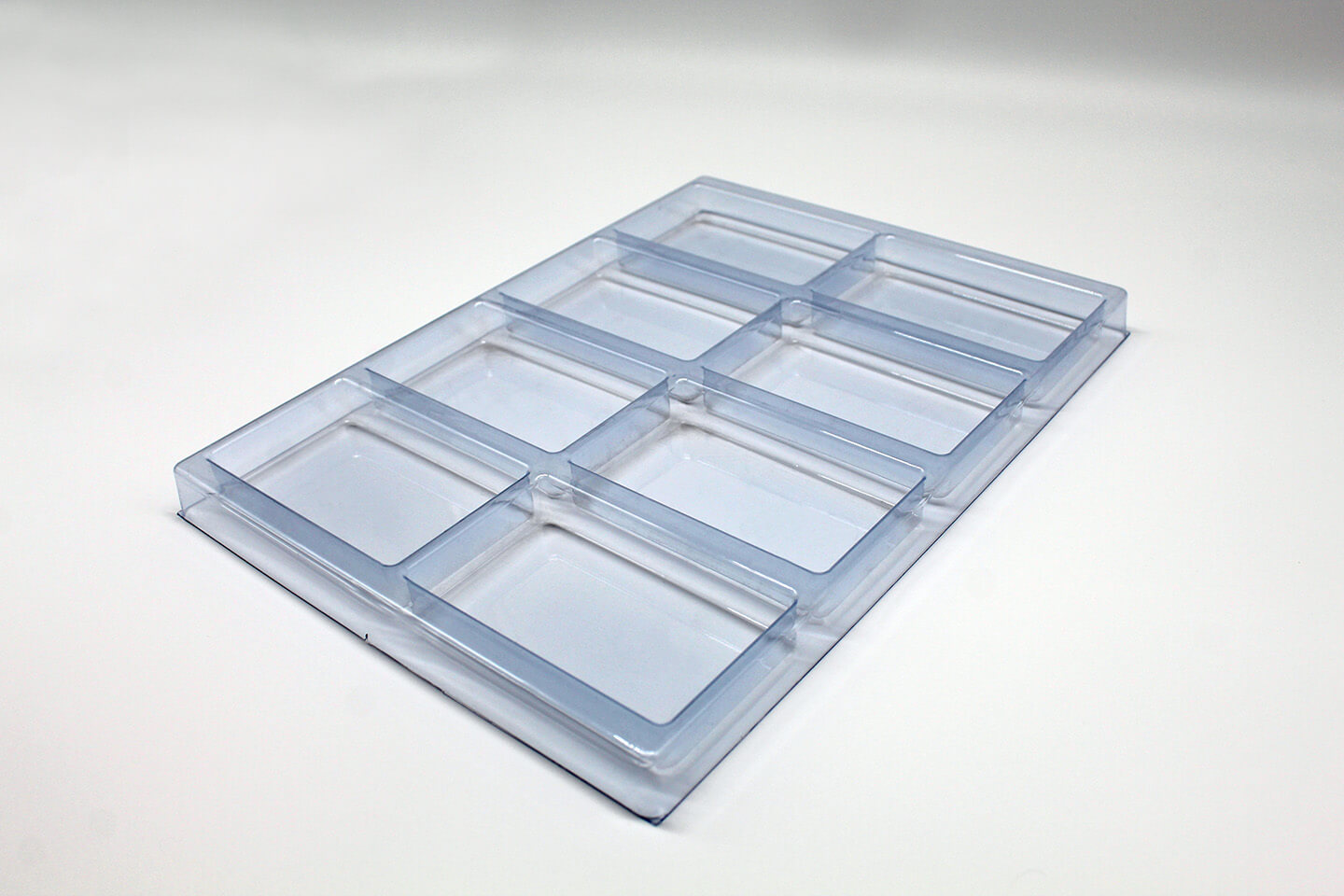

  • Individual device protection
  • Black conductive or clear antistatic PVC
  • Trays stack for volume handling and shipping
  • Lids available for most trays
  • Part numbers: Add “C” For Conductive, Add “A” For Antistatic
  • Clear impregnated static dissipative PVC or PETG.
  • Standard Thickness are .020″, .030″, .035″ and .050″
  • This Material meets or exceeds the EIA-541 and ESO/ESD S.11.11 requirements for resistivity and static
  • decay at 12% relative humidity
  • Black conductive high impact polystyrene, standard thickness .020″ and .030″





Sizes Available

Part Number No. of Cavities Cavity Dimensions Typical Device
TR-ACR25T 25 Form Fit Microwave
TR-CCT5 5 1.20 x 1.20 x .312 PLCC-LCC Chip Carrier
TR-CCT 20 20 .85 X .52 X .312 PLCC-LCC Chip Carrier
TR-CCT25 25 .52 X .52 X .312 PLCC-LCC Chip Carrier
TR-FM15 15 .680 x .680 x .130 Various
TR-FPC 100T 100 1.000 x .750 Flat Pack Carrier
TR-FPT 12C 12 2.250 x 2.260 Cerquad Flat Leads and Frame
TR-GW 15 Top/Bot. 15 .875 x .875 x .125 Fine Pitch Gull Wing
TR-GW 15B 15 .875 x .875 x .250 Fine Pitch Gull Wing with Bumpers
TR-HPS1 25 1.20 x 1.20 x .375 Pin Grid Array
TR-HPS2 15 1.10 X 2.20 X .375 Substrates
TR-HPS3 8 1.50 x 3.375 x .375 Substrates
TR-HPT25 25 1.56 X .890 X .180 Substrates
TR-HYB25 25 2.000 X 1.000 Large Hybrid Substrates
TR-HYT18 18 2.30 X .60 X .300 Substrates
TR-J44T 36 44 Lead Chip Carrier
TR-LF150T 150 Lead Frames
TR-LF150TA 150 Lead Frames
TR-MET1 60 1.00 x .562 x .125 Microwave
TR-PCC-20 20 1.775 x 1.775 124 Lead PLCC
TR-PGA-15 15 1.62 x 1.62 .400 Pin Grid Arrays
TR-PGA-15A 25 1.324 x 1.324 x .360 Pin Grid Arrays
TR-PGA25B 25 1.324 x 1.324 x .3660 Pin Grid Arrays with Center Bumps
TR-PGALID Pin Grid Arrays
TR-SCX16T 16 Form Fit Transducers
TR-SPX1T 20 Form Fit Transducers
TR-SS40T 40 Form Fit Substrates
TR-TO66 25 Form Fit TO-66
TR-TO220 60 Form Fit TO-220 Device
TR-WT 6 T 6 3.375 x 3.375 x 1875 3″ Wafers
