SPI/Semicon’s Horizontal Wafer Shippers (HWS) offer superior protection to wafers during transport.
Our patent-pending moveable wall design securely holds wafers in place as the cover is closed, limiting movement and reducing particle generation. The HWS provides unprecedented lateral shock protection by holding the entire stack of wafers radially and with its easy-to-use four latch locking system, it can securely house up to 25 wafers. The wafer shipper is manufactured using the industry’s cleanest, high-purity polypropylene—providing further ESD protection.
FEATURES
- Minimal outgassing, trace metals, and ionics
- Unparalleled shipping and impact protection
- Secure, easy-to-use four latch locking mechanism
- Arrowed, notch feature for proper top/base alignment
- RF Tag Housing in the base for inventory and process management
- Houses up to 25 Wafers using carbon or non-woven interleaves
- Houses up to 13 Bumped Wafers using Wafer Separator Rings
(pn WSR200-R1) - Compatible with most automated wafer, unpacking,
and sorting equipment - Each package is double cleanroom bagged
Additional
- 300: designed to meet SEMI Standard load port specifications
- 200: designed to closely match the exterior packaging size
of existing products widely used in the industry - 200 (Bumped): designed for transporting “bumped” wafers
using SPI/Semicon’s Wafer Separator Rings
SPECIFICATIONS
| Part Name | Part Number | L x W x H |
|---|---|---|

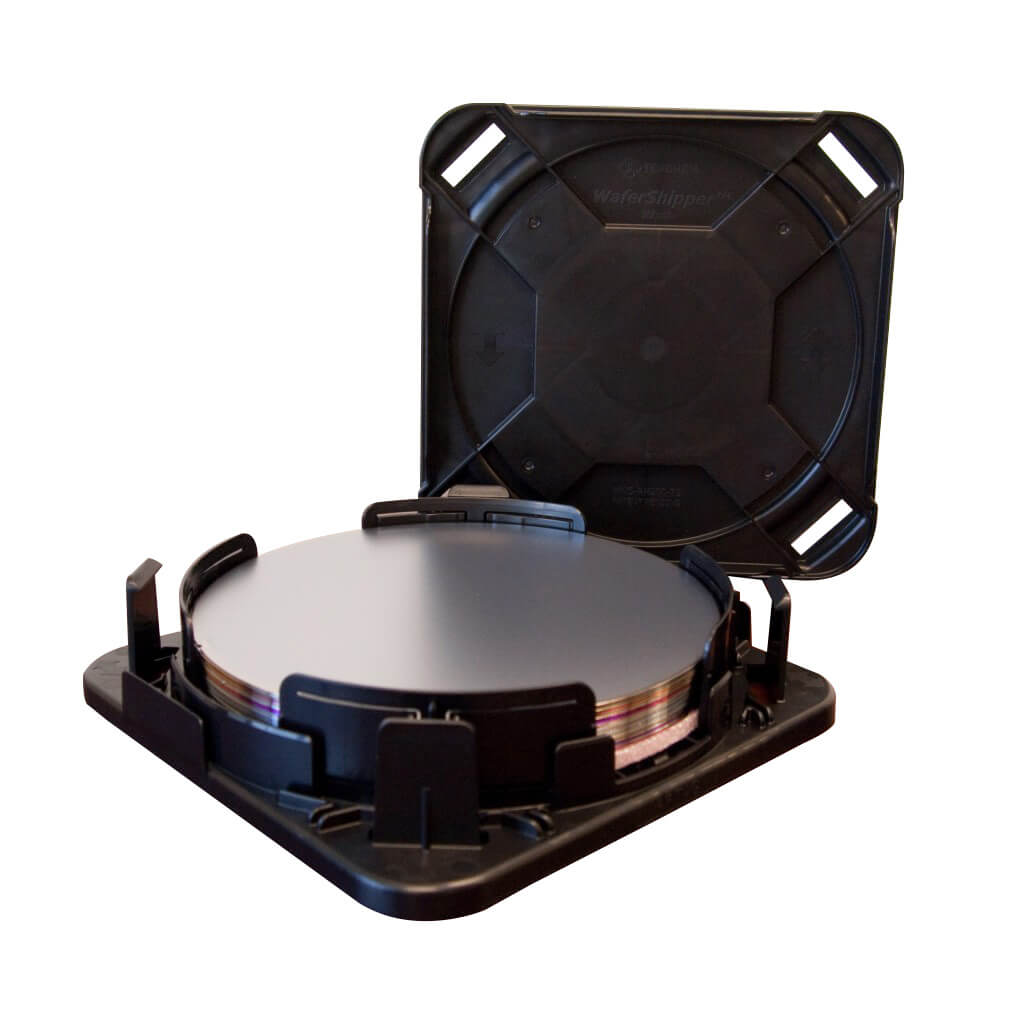

| 200mm HWS-RM | HWS-RM200A2 | 226mm x 226mm x 69mm |

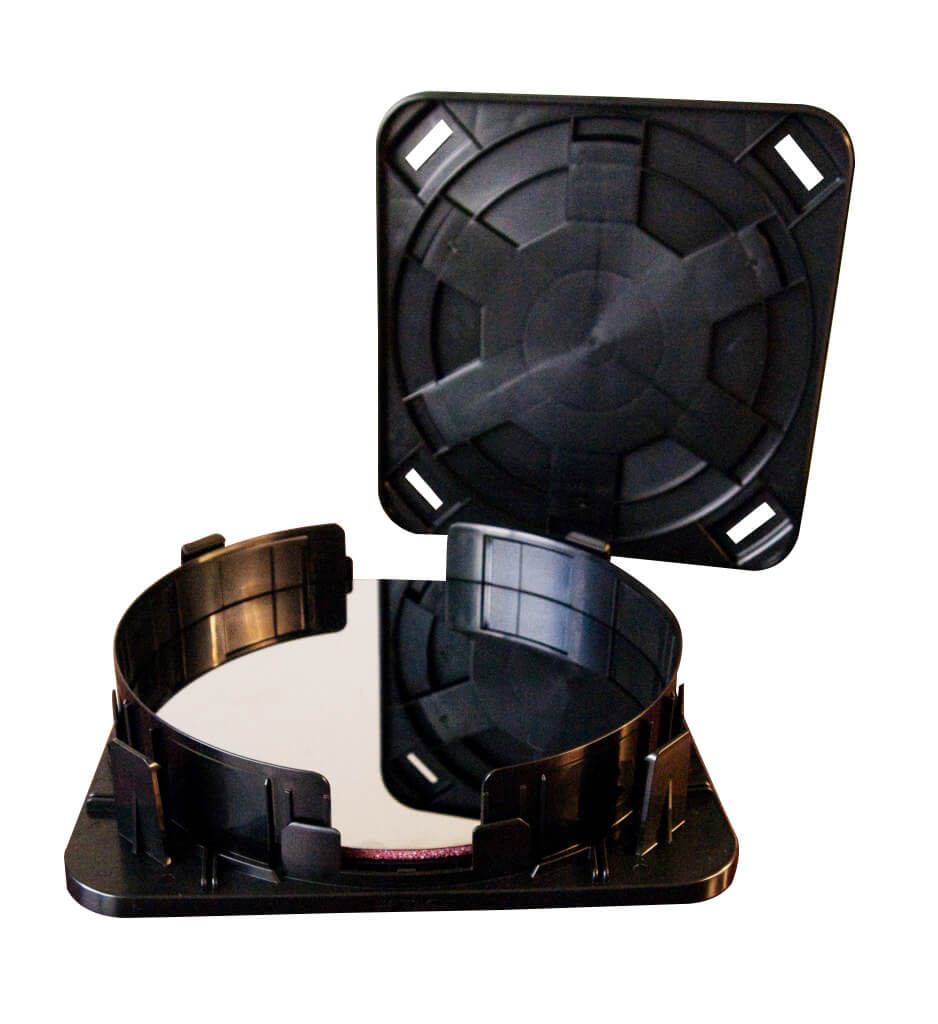

| 300mm HWS-RM | HWS-RM300-A1 | 326mm x 326mm x 76mm |

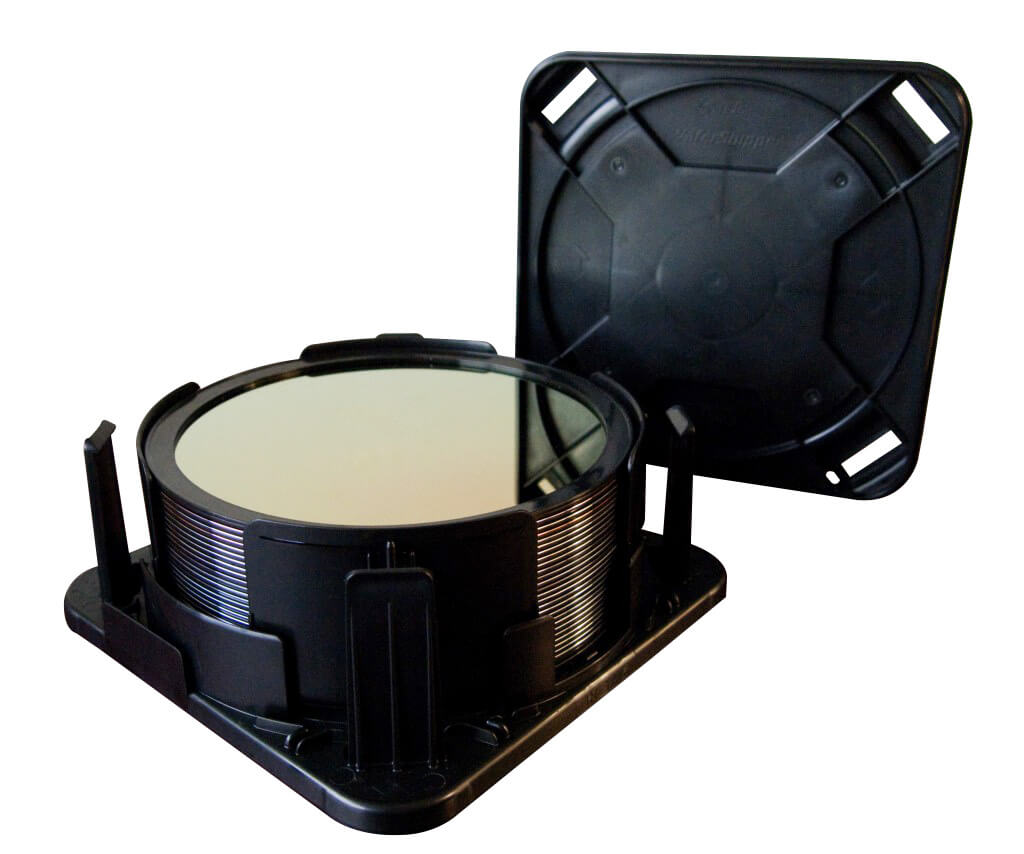

| 200mm BHWS | BHWS200-A5 | 226mm x 226mm x 69mm |
